In this lesson, we will explore the fascinating structure and components of our solar system. This will include an examination of the formation of the solar system, the central role of the Sun, and the various planets that orbit within our celestial neighborhood. This topic ties in with our previous discussions on gravity, circular motion, Kepler’s Laws, and Newton’s Law of Universal Gravitation, providing a deeper understanding of how these principles govern the dynamics of our solar system.

Formation of the Solar System

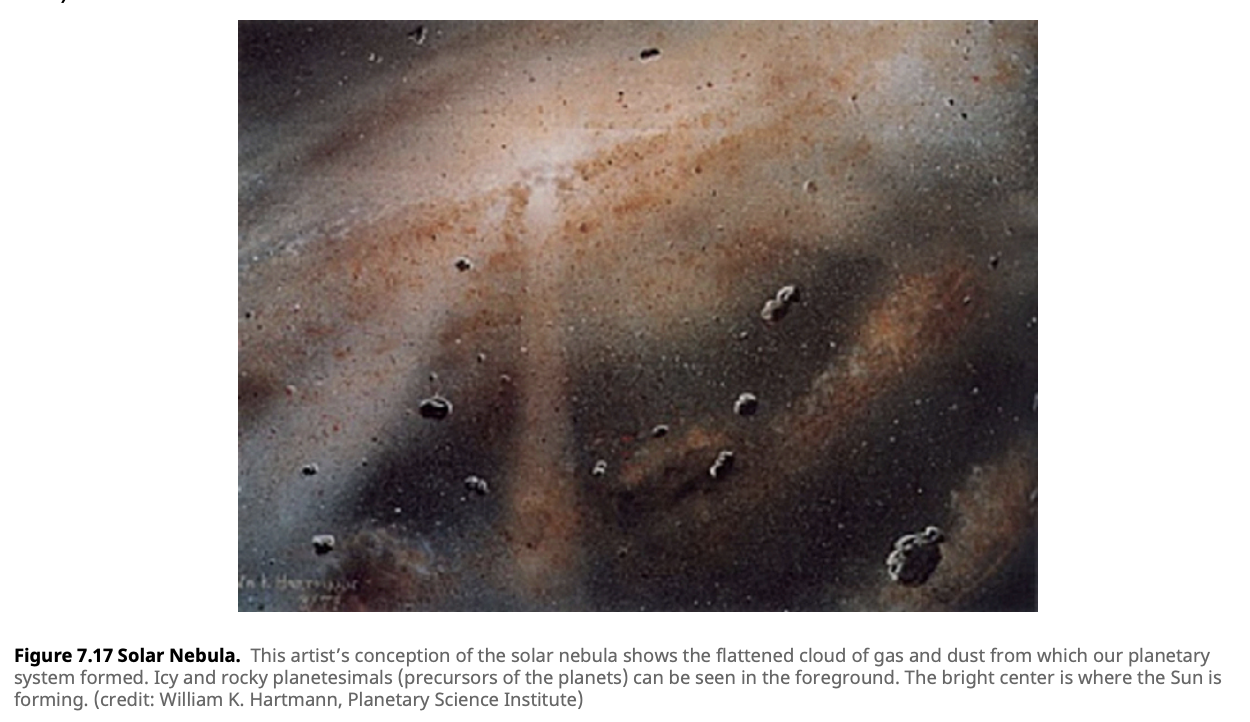

Imagine a vast cloud of gas and dust floating in space, a remnant of ancient stellar explosions. About 4.5 billion years ago, this seemingly unremarkable cloud began to collapse under its own gravity. This was the solar nebula, and its collapse initiated the birth of our solar system.

The Role of Gravity and Circular Motion

• Gravity: As the solar nebula collapsed, gravity pulled the gas and dust towards the center, creating a dense core that would become the Sun.
• Circular Motion: Conservation of angular momentum caused the collapsing cloud to spin faster and flatten into a rotating disc. This rotating disc of gas and dust is known as the protoplanetary or circumstellar disc.

Formation of Planetesimals and Protoplanets

Within the circumstellar disc, particles of dust and ice began to stick together through electrostatic forces, forming clumps called planetesimals. These planetesimals, ranging from meters to kilometers in size, acted as the building blocks of planets. Through the process of accretion, these planetesimals collided and stuck together, gradually growing larger.

• Planetesimals: Small bodies formed from dust and ice that collided and stuck together. Over time, these planetesimals grew through further collisions and accumulation of material.
• Protoplanets: As planetesimals continued to collide and merge, they formed larger bodies known as protoplanets. These protoplanets, several hundred kilometers in diameter, had sufficient gravity to influence their surroundings and attract more material.

Formation of Planets

The protoplanets eventually grew into the planets we see today through continued accretion and collisions. The solar wind from the young Sun blew away much of the remaining gas in the disc, halting further growth of the gas giants but allowing the terrestrial planets to continue forming from rocky materials.

• Terrestrial Planets: Closer to the Sun, where temperatures were higher, protoplanets formed from rocky and metallic materials. These include Mercury, Venus, Earth, and Mars.
• Gas Giants: Further from the Sun, where temperatures were cooler, protoplanets could accumulate lighter gases like hydrogen and helium, forming the gas giants Jupiter and Saturn.
• Ice Giants: In the outer regions of the disc, protoplanets formed from ices and gases, resulting in Uranus and Neptune, which have significant amounts of water, ammonia, and methane.

The Sun: The Central Star

At the heart of our solar system lies the Sun, a G-type main-sequence star that accounts for more than 99% of the solar system’s total mass. It is the source of energy that sustains life on Earth and drives the climate and weather.

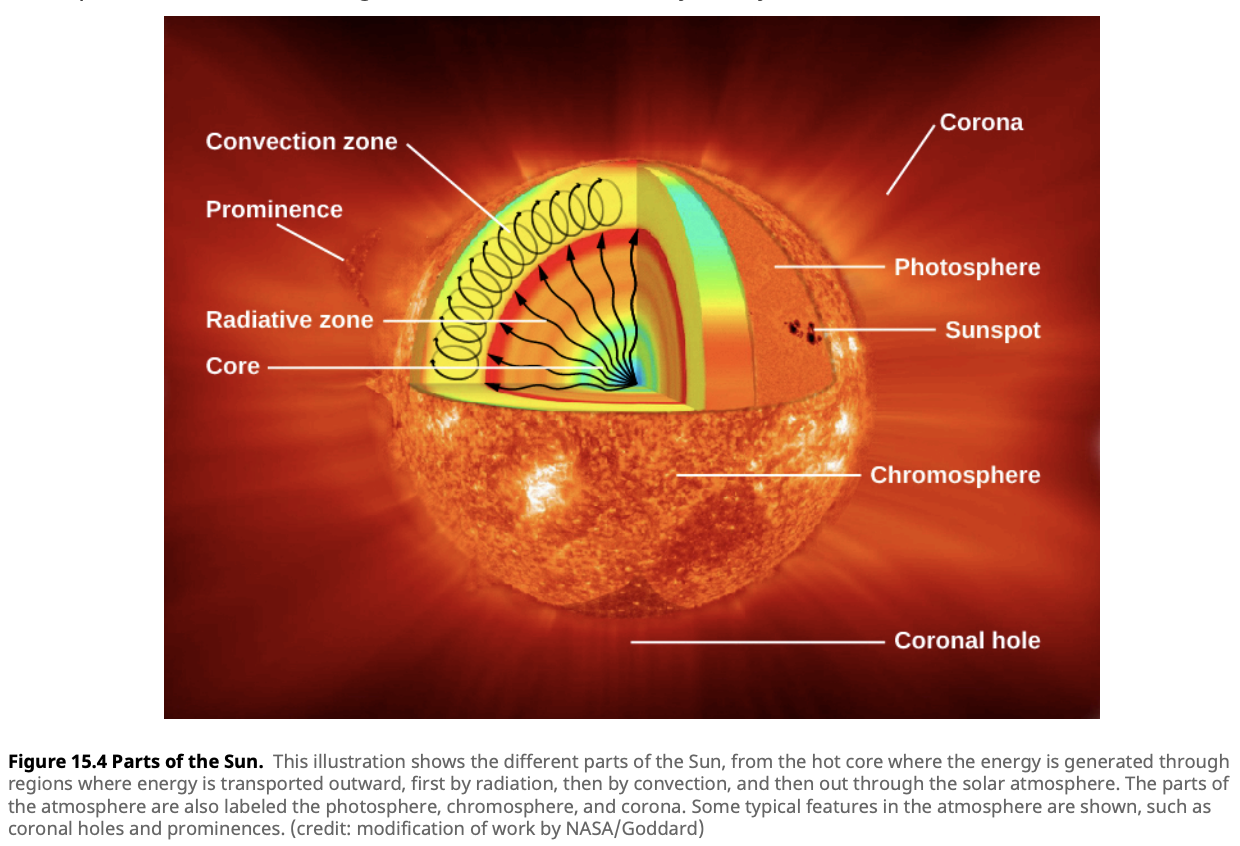

Structure of the Sun

• Core: The innermost part where nuclear fusion occurs, converting hydrogen into helium and releasing immense amounts of energy.
• Radiative Zone: Energy from the core travels outward by radiation.
• Convective Zone: Energy is transported to the surface by convection currents.
• Photosphere: The visible surface of the Sun, emitting the light we see.
• Chromosphere: A layer above the photosphere, visible during solar eclipses as a reddish glow.
• Corona: The Sun’s outer atmosphere, extending millions of kilometers into space and visible during total solar eclipses.

The Sun is primarily composed of hydrogen (about 74%) and helium (about 24%), with trace amounts of heavier elements. The nuclear fusion process in the core converts hydrogen into helium, releasing energy that radiates outward and eventually reaches Earth, sustaining life and driving our climate. We will study this process more in our unit on stars!

The Sun’s immense gravitational pull keeps the planets in their orbits, and its energy output creates the dynamic environment of the solar system.

The Planets: Types and Characteristics

The planets in our solar system are divided into two main categories: Terrestrial and Jovian, each with distinct characteristics and fascinating features.

Terrestrial Planets

The inner solar system is home to the terrestrial planets, rocky worlds forged from the dense materials left behind in the protoplanetary disc. These planets, closest to the Sun, are primarily composed of rock and metal, featuring solid surfaces and a variety of geological landscapes.

Mercury

Mercury, the smallest and innermost planet, orbits the Sun at a breakneck speed. Despite its proximity to the Sun, Mercury experiences extreme temperature variations. Daytime temperatures soar to scorching heights, while nighttime temperatures plummet to icy lows due to its thin atmosphere, which lacks the ability to retain heat. The surface of Mercury is heavily cratered, resembling our Moon, and its lack of significant atmosphere allows us to glimpse its ancient, unaltered landscape.

Venus

Venus, often called Earth’s “sister planet” due to its similar size and composition, presents a stark contrast in conditions. Shrouded in thick clouds of sulfuric acid, Venus has the hottest surface temperatures in the solar system, reaching up to 467 degrees Celsius (872 degrees Fahrenheit). This intense heat is the result of a runaway greenhouse effect, where a dense atmosphere rich in carbon dioxide traps solar radiation. The surface pressure on Venus is crushing, equivalent to being 900 meters underwater on Earth.

Earth

Earth, our home planet, stands out as the only known world with liquid water on its surface and life in abundance. Earth’s diverse climate and geological features, including mountains, oceans, and forests, create a rich and dynamic environment. The presence of liquid water is crucial, supporting a biosphere teeming with life. Earth’s atmosphere, composed of nitrogen, oxygen, and trace gases, provides the right conditions for life and shields the surface from harmful solar radiation.

Mars

Mars, known as the Red Planet due to its iron oxide-rich soil, has fascinated scientists and explorers for centuries. With surface features reminiscent of both Earth and the Moon, Mars hosts the largest volcano and canyon in the solar system—Olympus Mons and Valles Marineris, respectively. Mars has polar ice caps composed of frozen water and carbon dioxide. Evidence of ancient river valleys and lake beds suggests that liquid water once flowed on its surface, raising the possibility that Mars might have supported microbial life in the past.

Jovian Planets

As we venture further from the Sun, we encounter the majestic Jovian planets, also known as gas giants. These massive planets, composed primarily of hydrogen, helium, and other volatiles, present a stark contrast to the rocky terrestrial worlds. Their immense sizes and unique characteristics offer a fascinating glimpse into the outer reaches of our solar system.

Jupiter

Jupiter, the largest planet in our solar system, is a colossal world with a diameter of about 11 times that of Earth. Its most famous feature is the Great Red Spot, a gigantic storm larger than Earth itself, which has been raging for centuries. Jupiter’s atmosphere is a dynamic blend of hydrogen and helium, with swirling clouds of ammonia crystals and complex weather patterns.

Jupiter is also home to an impressive array of moons, with over 79 known satellites. The largest of these, Ganymede, is the largest moon in the solar system, even surpassing Mercury in size. Other notable moons include Europa, which may harbor a subsurface ocean, and Io, the most volcanically active body in the solar system.

Saturn

Saturn, the second-largest planet, is renowned for its stunning ring system, a collection of countless ice and rock particles that orbit the planet. These rings, which can be seen through a small telescope, vary in density and composition, creating a breathtaking spectacle. Saturn’s atmosphere, like Jupiter’s, is predominantly hydrogen and helium, with upper cloud layers of ammonia, methane, and water ice.

Saturn’s numerous moons, including Titan and Enceladus, add to its intrigue. Titan, the second-largest moon in the solar system, has a thick atmosphere and lakes of liquid methane, while Enceladus, with its geysers of water-ice, hints at the presence of a subsurface ocean.

Uranus

Uranus stands out with its extreme axial tilt of about 98 degrees, causing it to rotate on its side. This unique tilt leads to unusual seasonal variations, with each pole experiencing 42 years of continuous sunlight followed by 42 years of darkness. Uranus is classified as an ice giant due to its composition, which includes water, ammonia, and methane ices, in addition to hydrogen and helium.

Uranus’s faint ring system and 27 known moons, including Miranda and Ariel, offer further points of interest. Miranda, in particular, features one of the most varied terrains in the solar system, with massive canyons and patchwork regions suggesting a history of intense geological activity.

Neptune

Neptune, the farthest planet from the Sun, is a striking blue world due to the presence of methane in its atmosphere, which absorbs red light and reflects blue. Neptune is known for its supersonic winds, which can reach speeds of up to 2,100 kilometers per hour (1,300 miles per hour), the fastest in the solar system.

Neptune has a faint ring system and 14 known moons, with Triton being the most notable. Triton is unique for its retrograde orbit, meaning it orbits Neptune in the opposite direction of the planet’s rotation. Triton also exhibits geysers of nitrogen gas, suggesting active geological processes.

Solar System Simulator

Interested in learning more about the solar system? Check out the simulation below to get an interactive representation of the Sun and palnets.

Check Your Understanding

Apply the concepts you learned in the previous lessons to the solar system!

1. Formation of the Solar System: Calculate the gravitational force between a planetesimal (mass = $1 \times 10^{21}$ kg) and a protoplanet (mass = $5 \times 10^{23}$ kg) that are 5,000 km apart.


2. Kepler’s Second Law: If Mars sweeps out an area of $2 \times 10^8$ square kilometers in 15 days, what area will it sweep out in 30 days?


3. Kepler’s Third Law: Calculate the orbital period of Jupiter, which is 5.20 AU from the Sun.


4. Gravitational Acceleration on a Planet: Calculate the gravitational acceleration on the surface of Saturn (mass = $5.68 \times 10^{26}$ kg, radius = 58,232 km).


5. Orbital Speed of Mercury: Calculate the orbital speed of Mercury, given that its average distance from the Sun is 57.9 million km. (Mass of the Sun = $1.989 \times 10^{30}$ kg).


6. Energy Output of the Sun: Given that the Sun’s luminosity is $3.828 \times 10^{26}$ watts, calculate the total energy output of the Sun in one day.

   Hint: 1 Watt is the same as 1 Joule/second. Joules are a unit of energy.



Resources

• Astronomy by Andrew Fraknoi, David Morrison, and Sidney C. Wolff
• Foundations of Astrophysics by Barbara Ryden and Bradley M. Peterson
